Description

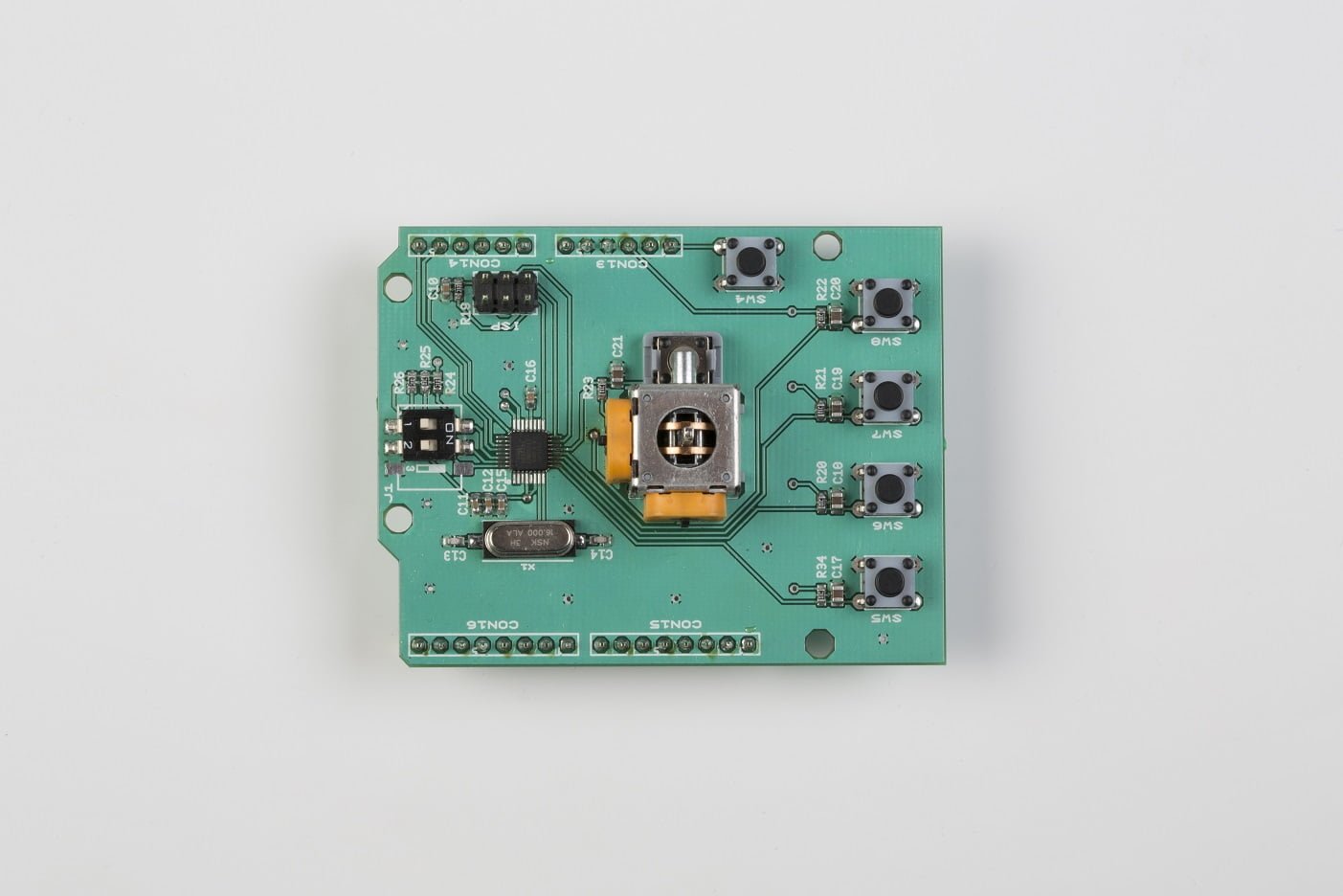

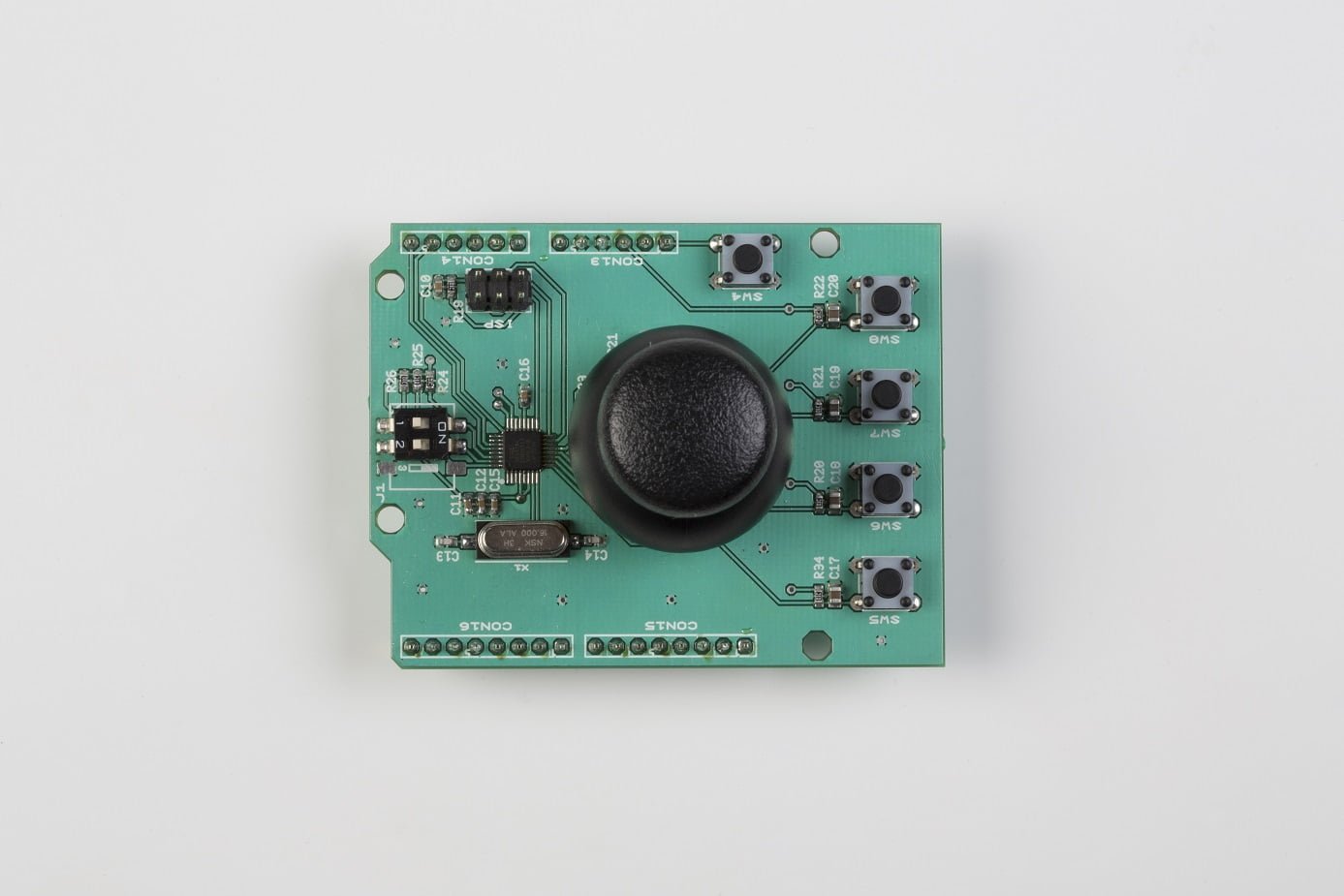

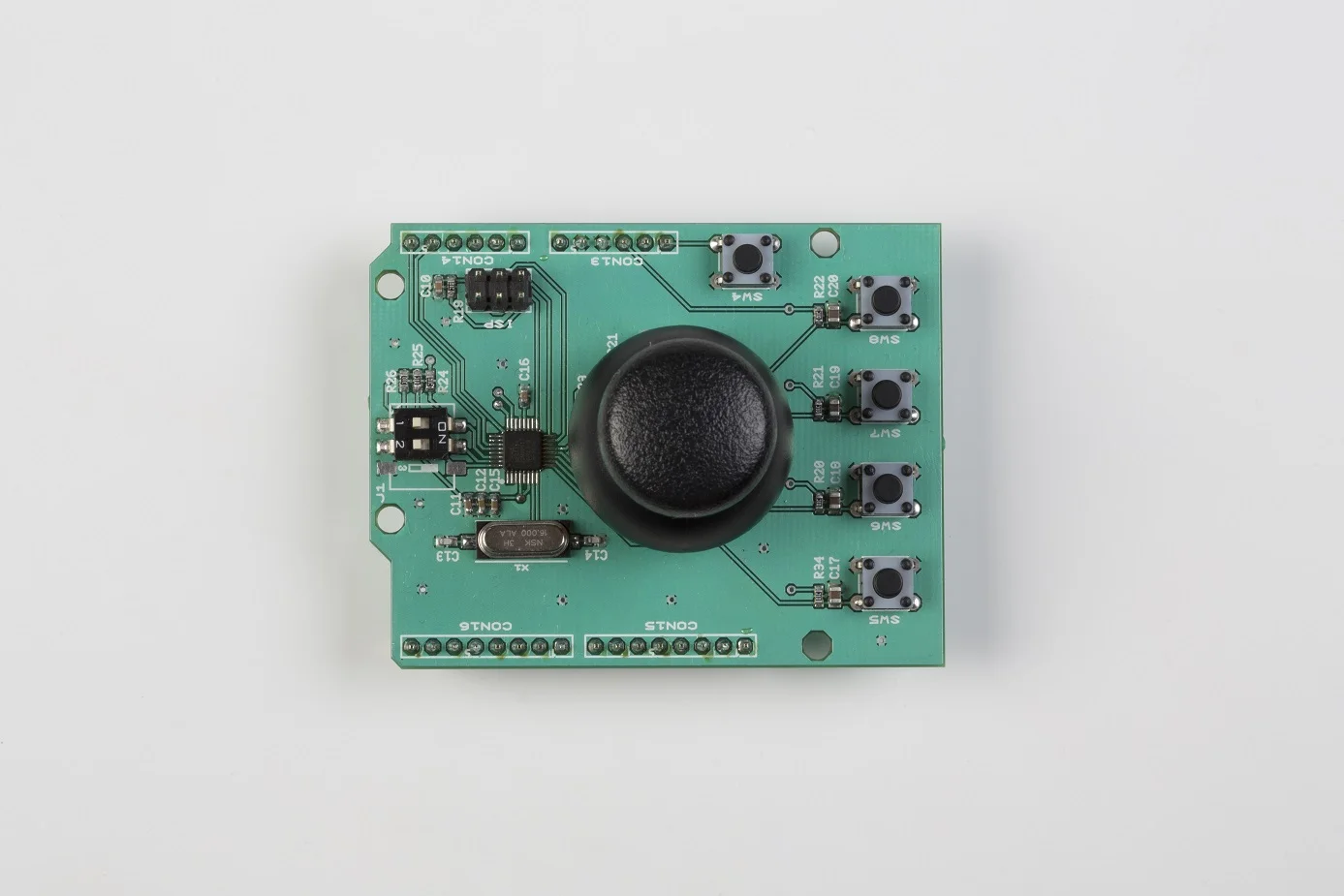

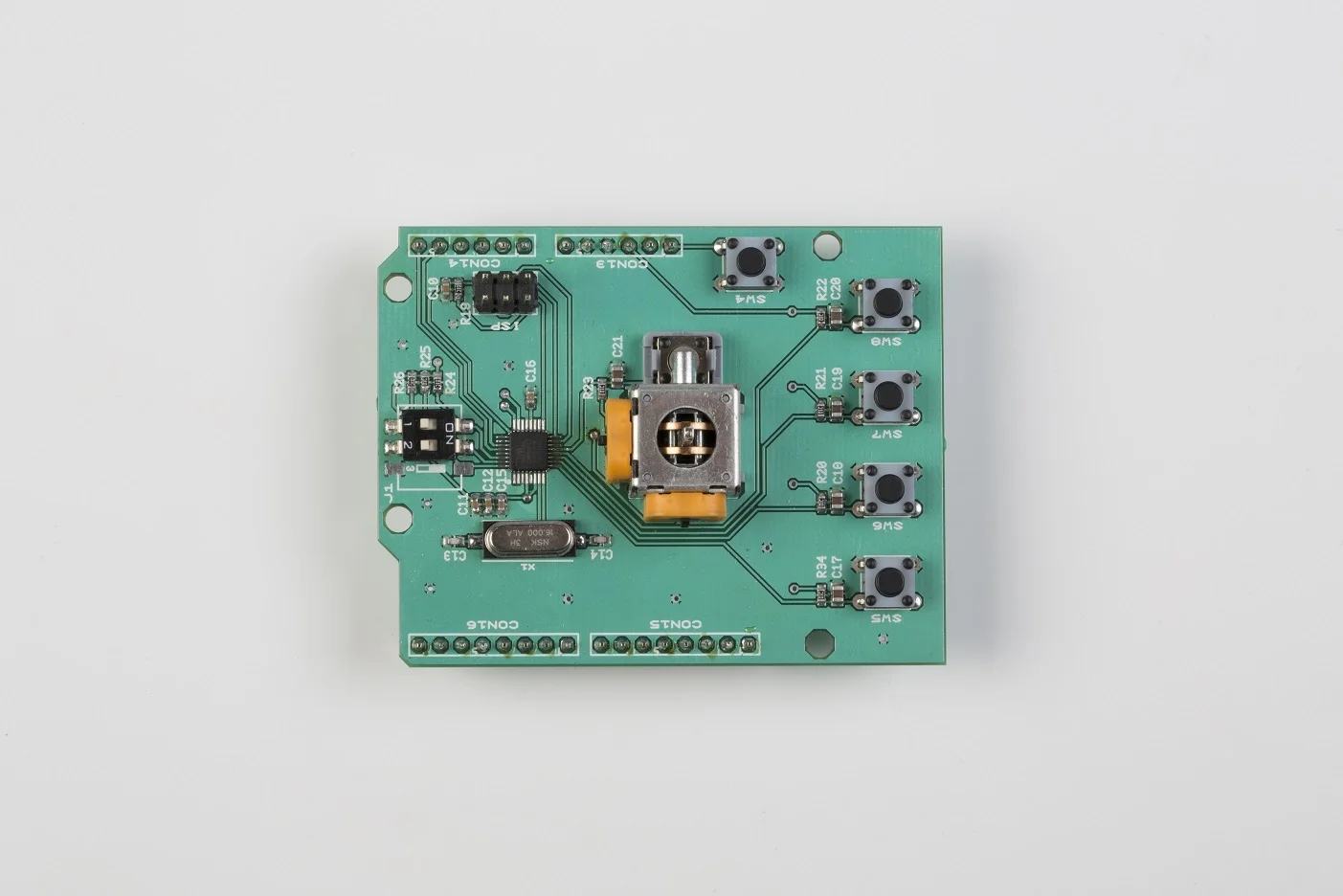

Discover the ultimate upgrade for your projects with our Enhanced I2C Joystick Shield. This innovative shield combines the functionality of an analog joystick and five buttons with the simplicity of I2C communication, requiring just two or three wires (if using IRQ).
Key Features:
- Integrated ATMEGA168 Microcontroller: Functions in I2C slave mode to collect joystick and button data, ensuring smooth and reliable communication with the master device.
- Dynamic I2C Address Configuration: Preloaded with a default address, which can be easily updated via I2C commands from the master device.
- Customizable Settings:
- Jumper Options: Choose between the default or programmed I2C address and enable/disable the interrupt function based on your needs.
- Shield Reset Button: A dedicated reset button for the shield itself ensures seamless recovery from any malfunctions.
Real-Time Data Transmission
On request, the shield sends 3 Bytes of data to the master device, providing precise X-Y joystick positions and the status of all five buttons.
Ideal Replacement for Standard Shields
Designed as a superior alternative to traditional joystick shields, this product offers enhanced functionality and a more versatile user experience.
Upgrade your joystick shield today and simplify your projects with the power of I2C communication!
