Description
Transform the way you monitor power and current with the INA226 Current Shunt and Power Monitor. This innovative module offers precise voltage, current, and power measurement in a compact, easy-to-use design. With its I2C™ or SMBUS-compatible interface, it simplifies integration and delivers reliable performance for even the most demanding applications.
Key Features:
•Precise Voltage and Current Monitoring: Measure voltage from 0 V to 36 V and bi-directional current up to ±20 A for comprehensive power analysis.
•Programmable Settings: Customize calibration, conversion times, and averaging to suit your specific project requirements, ensuring accurate and actionable data.
•Seamless I2C Integration: Preloaded with 16 configurable I2C addresses, making it easy to connect to your existing setup.
•Efficient Design: Operates on a 2.7 V to 5.5 V power supply, consuming less than 1 mA for optimized energy usage.
•Compact and Durable: Designed for versatility, the 20 mm x 27 mm module operates flawlessly in temperatures ranging from -40°C to 125°C.
Real-Time Monitoring Made Easy
With its 16-bit resolution, the INA226 delivers highly accurate readings (1.25 mA for current, 1.25 mV for voltage) and outputs precise, real-time data directly to your master device via I2C.

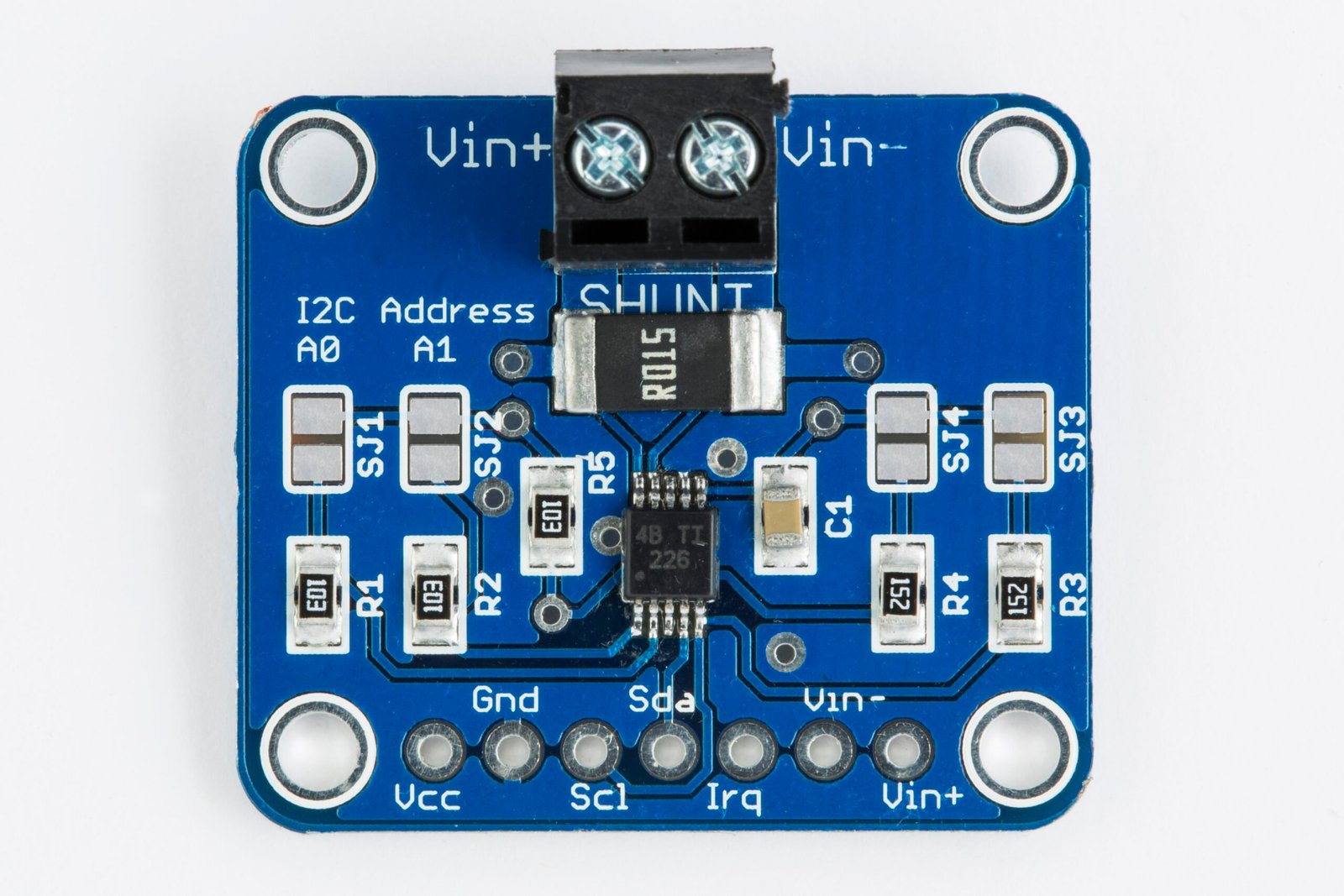

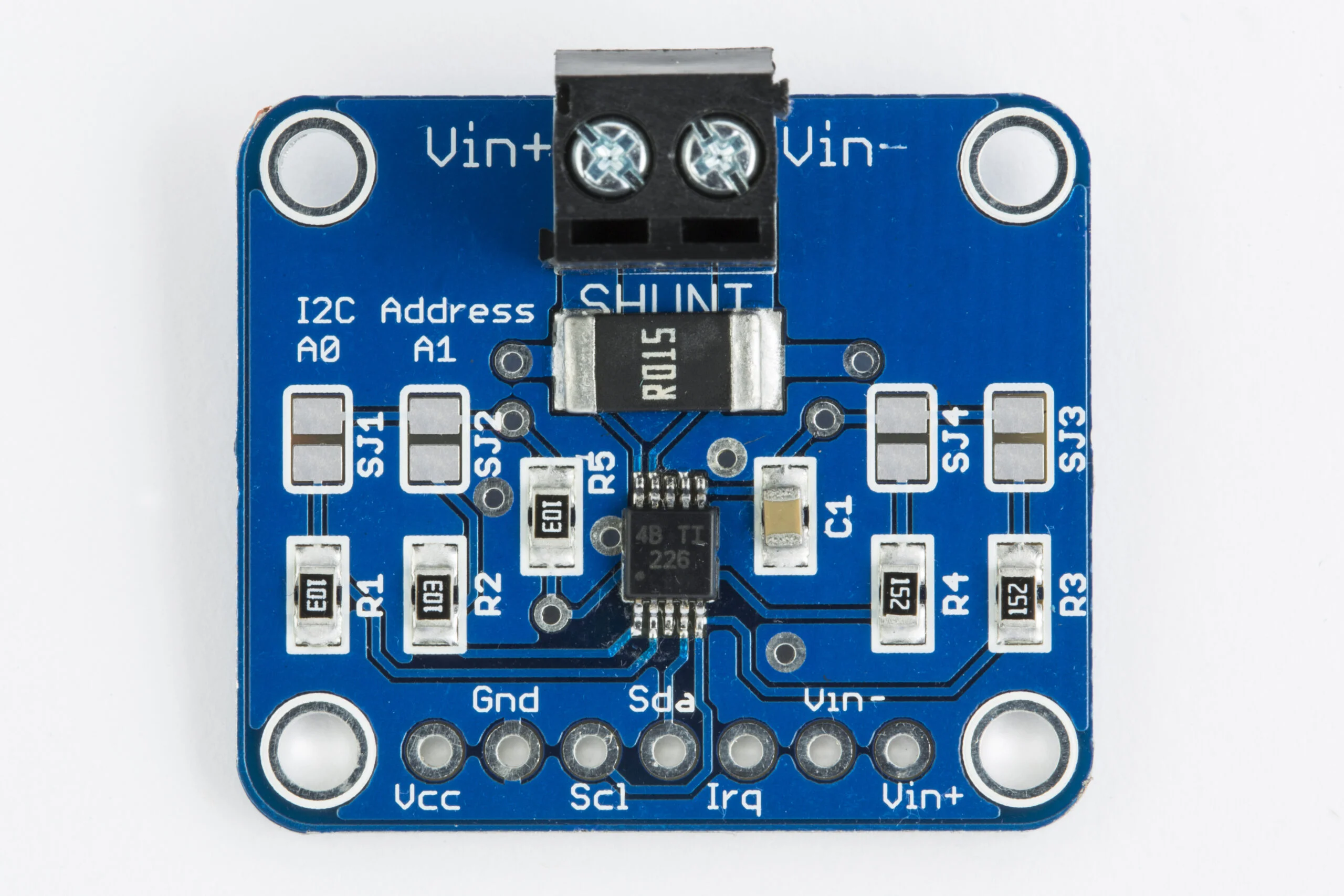

Simple and Flexible Setup:
•Power Inputs: Connect 2.7-5.5 V to VCC and GND.
•Data Lines: Use SDA and SCL for I2C communication.
•Alarm and Configuration: ALERT pin for multi-function alarms, A0 and A1 pins for address customization.
Perfect for Any Power Monitoring Project
Whether you’re designing energy-efficient systems, managing battery-powered devices, or developing advanced power management solutions, the INA226 is the ultimate tool for precise and reliable monitoring.
Upgrade Your Monitoring Today!
Streamline your power management projects with the INA226. Its advanced features and effortless integration make it the ideal choice for engineers and hobbyists alike.
